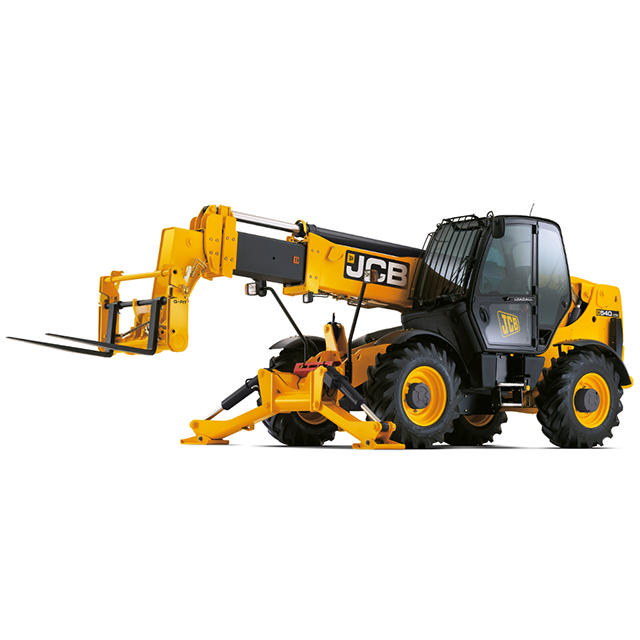

JCB 540-140

JCB - Telescopic handlers

Nominal load at COG 4 t
Standard tyres 15.5-25
Centre of gravity 500 mm
Transmission type W
Max. Reach horizontal 9,25 m
Capacity at full forward reach 1.25 t
Lifting height 13.8 m
Capacity at full lift hight 4 t
Weight 10.86 t
Transport length 6.25 m
Transport width 2.35 m
Transport height 2.59 m
Travel speed 32 km/h
Engine manuf. JCB
Engine type EcoMax
Engine power 93 kW
Engine power 125 HP
Displacement 4.4 l
No. of cylinders 4
Cylinder bore x stroke 103x132 mm
Emission level Euro III B
max. climbing ability ###
